AG-CF03 Aerogel Fireproof Coating (Intumescent Type)

About AG-CF03 Aerogel Fireproof Coating (Intumescent Type)

AG-CF03 is a high-performance industrial intumescent fireproof coating reinforced with nano silica aerogel technology. It is designed for steel structures, metal substrates, building projects, energy systems, petrochemical facilities, and advanced manufacturing applications requiring reliable fire resistance.

The coating combines:

Self-produced nano-porous silica aerogel powder

High-efficiency intumescent flame-retardant system

Inorganic fire-resistant components

Through a specialized composite formulation, AG-CF03 achieves 2-hour fire resistance (F2.00) at only 2mm dry film thickness, tested according to GB 14907 standard.

This ultra-thin design provides effective fire protection while minimizing structural load and material consumption.

Working Principle

When exposed to high temperature or flame, AG-CF03 expands rapidly to form a dense carbonized char layer helps:

Reinforce the char layer structure

Improve thermal insulation performance

Reduce char collapse or cracking

Slow down heat transfer to the steel substrate

This aerogel-enhanced system improves the stability of the fire protection layer under prolonged fire exposure.

Key Advantages

2-Hour Fire Resistance at 2mm Thickness

AG-CF03 provides 2 hour fire rating with only 2mm coating thickness.

Compared with conventional thick-film intumescent coatings, it reduces material usage and simplifies structural design.

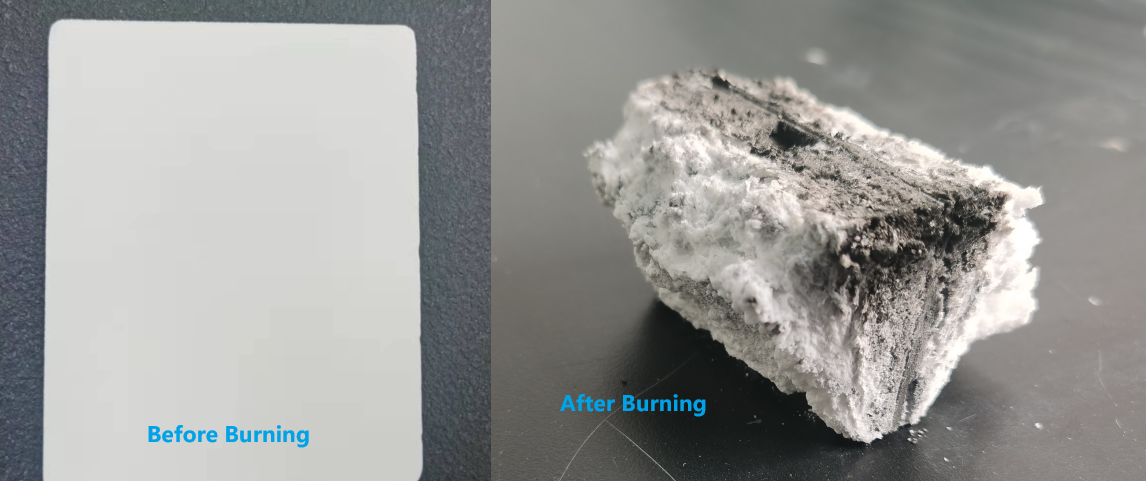

Before and after fire exposure demonstrates the expansion behavior and char layer reinforcement of AG-CF03 under high temperature conditions.

Strong Adhesion to Metal Substrates

Bonding strength: ≥1.0 MPa

The coating maintains stable adhesion to steel and aluminum substrates, helping reduce risks of peeling, cracking and delamination

Fast Surface Drying

Surface dry time: ≤4 hours

This improves construction efficiency and allows faster project completion.

Dense and Stable Char Structure

After expansion, the coating forms a compact and reinforced char layer that helps maintain fire isolation performance during high-temperature exposure.

This provides valuable time for emergency response and fire control.

Multi-Industry Application

AG-CF03 is suitable for both building and industrial sectors.

It can be used independently or integrated with thermal insulation systems to form combined solutions for projects requiring both energy efficiency and fire protection.

Application Fields

Building & Infrastructure

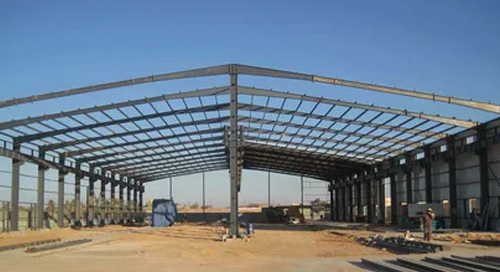

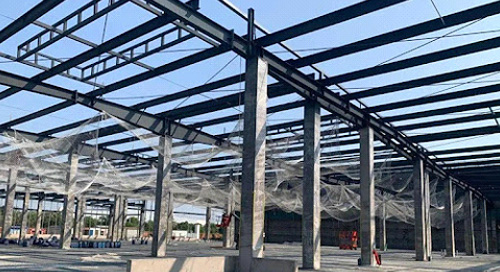

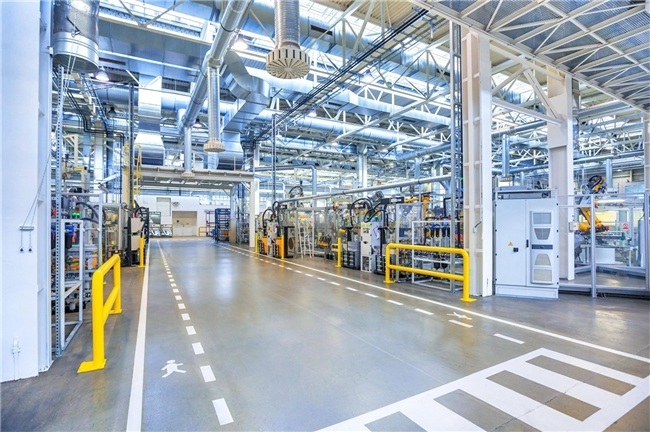

Commercial and public buildings

High-rise and large-scale structures

Structural components requiring ≥2h fire resistance

Energy Storage & Power Systems

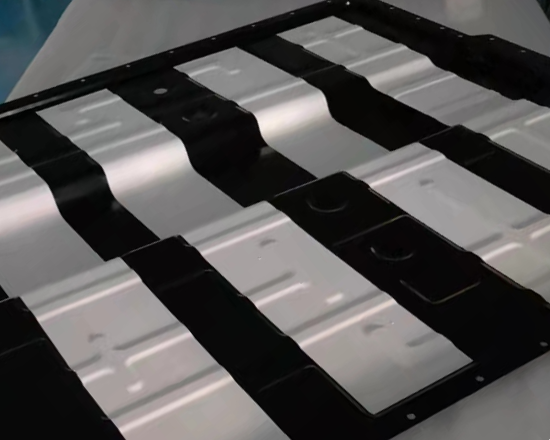

Battery pack fire protection

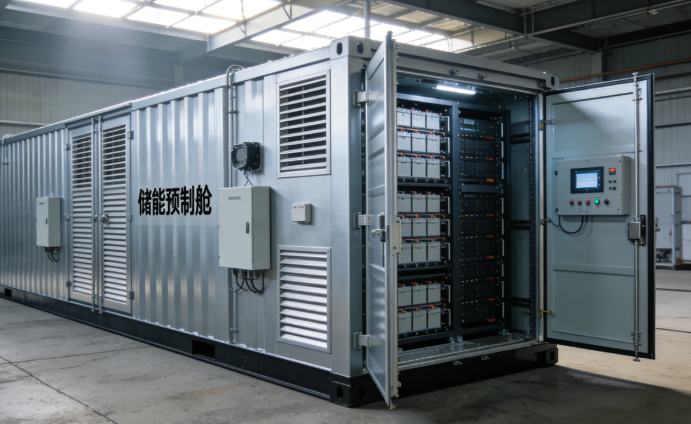

Energy storage system (ESS) enclosures and cabinets

Electrical and power equipment housings

Petrochemical & Heavy Industry

Oil & gas facilities

Offshore and marine steel structures

Chemical plants and high-risk industrial environments

Transportation & Equipment Manufacturing

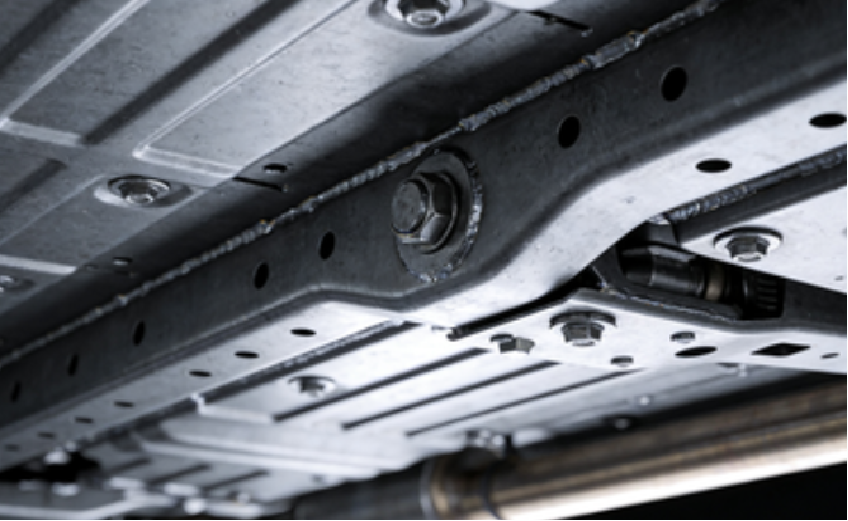

Automotive structural components

Equipment housings, frames, and metal assemblies
