AG-CJZ Aerogel Insulation Middle Coating

How AG-CJZ Aerogel Coating Delivers Superior Heat Blocking Performance

The industry-leading heat insulation performance of AG-C aerogel coating comes from the unique nanoporous structure of its core aerogel powder raw material.

The nano-scale silica aerogel particles in the coating form a 3D network structure with 20-50nm ultra-fine pores, which is 1/5000 of the diameter of a human hair. This innovative nano structure can:

Locks static air in the nanopores, completely suppressing gas convection and solid heat conduction;

Delivers ultra-high mid-far infrared emissivity, blocking thermal radiation transfer;

Works with the reflective topcoat to reflect more than 85% of solar radiation heat, stopping heat from entering the interior from the source;

Core Advantages of AG-CJZ Aerogel Thermal Insulation Coating

AG-CJZ aerogel coating redefines the performance limit of thin-layer thermal insulation materials. With the unique nanoporous structure of its aerogel powder raw material, 2mm thick coating delivers equivalent thermal resistance of 40mm traditional rock wool, achieving 20 times higher heat insulation efficiency per unit thickness.

With an ultra-low thermal conductivity of ≤0.035-0.044 W/(m·K) at 25℃, it creates a 4-6℃ indoor temperature difference in buildings compared to uncoated surfaces under summer high-temperature conditions, it drastically reduces air conditioning running time and load, cutting cooling energy consumption by up to 40% for long-term use maintains stable heat blocking performance in the temperature range of -40℃ to 120℃, suitable for extreme weather conditions across the globe.

Traditional Thermal Insulation Coating VS Aerogel Coating (2mm)

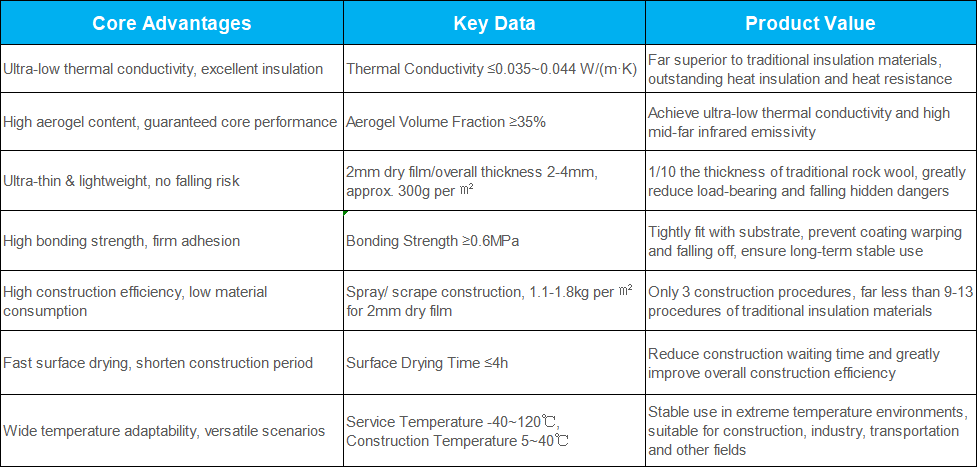

Technical Parameters

Superior Hydrophobicity for Long-Lasting Moisture & Mildew Resistance

AG-CJZ Aerogel Coating features permanent hydrophobic modification on the core aerogel powder particles, delivering excellent water repellency while maintaining breathability of the wall.

The coating surface forms a lotus leaf effect, with no water hanging or penetration, effectively preventing wall seepage and damp return, which eliminates the humid environment required for mold growth from the root, achieving long-lasting mildew and algae resistance, extending the service life of the building wall by more than 3 times.

It also has Excellent stain resistance and self-cleaning effect, the coating surface remains clean and intact for a long time even in harsh outdoor environment.

Lightweight, Crack-Resistant & Zero Detachment Risk

Unlike thick traditional insulation boards that have heavy load, easy cracking and high falling risk, AG-CJZ aerogel coating solves these industry pain points once and for all:

Ultra-lightweight design: dry film weight is only ~300g/m², reducing the load on the wall by 2-10kg/m² compared to traditional rock wool boards

Super strong adhesion: bonding strength up to ≥0.6MPa, tightly integrated with the substrate, no hollowing, no falling off

Excellent crack resistance: flexible coating formula adapts to the thermal expansion and contraction of the wall, no cracking, no peeling under long-term temperature changes

Streamlined Construction, Cost & Time Saving

aerogel thermal barrier coating system completely subverts the complex construction process of traditional insulation materials:

Traditional external wall insulation requires 9-13 construction procedures, while our coating system only needs 3 procedures (primer + middle coating + topcoat)

It can be applied by spraying or scraping, directly on the existing wall substrate without removing the original finish, drilling or installing fixtures, which will cuts overall project construction time by more than 50%, reduces total project cost by 10-15%, and has no impact on residents' daily life during the renovation of existing buildings

Water-Based, Eco-Friendly & Safe Formula

AG-CJZ Aerogel Coating uses a 100% water-based, solvent-free formula, which is non-toxic, harmless and fully compliant with global environmental protection standards:

No volatile organic compounds (VOCs), no harmful substances residue during production and construction

Lower carbon footprint than traditional rock wool insulation boards, reducing carbon emissions by 3,076.25 kg per ton of product

Fully meets the low-carbon and energy-saving requirements of green building certification around the world

 Application Scenarios

Building & Construction Sector

External wall, roof, curtain wall thermal insulation and energy-saving renovation of commercial buildings, residential buildings, public facilities;

Thermal insulation and mildew prevention for sunrooms, swimming pool enclosures, prefabricated buildings and historic building renovation;

Thermal insulation and heat protection for interior walls, ceilings;

Moisture-proof and mildew-proof in underground or hospitals;

Whether you are a manufacturer looking to develop your own aerogel coating products, or a buidling material distributor seeking ready-to-use solutions, we can support you with raw materials supply, technical guidance, and OEM/ODM services.

To Explore AG-C Aerogel Real World Case, you can click AG-CJZ Aerogel Coating Building Insulation Project Cases

Looking for OEM / Private Label Solutions or More Partnership about Aerogel Coating?  Check Our Partnership Proposal AG-C Series Aerogel Coating Partnership Models: OEM, Technology Licensing, and Local Production Solutions
