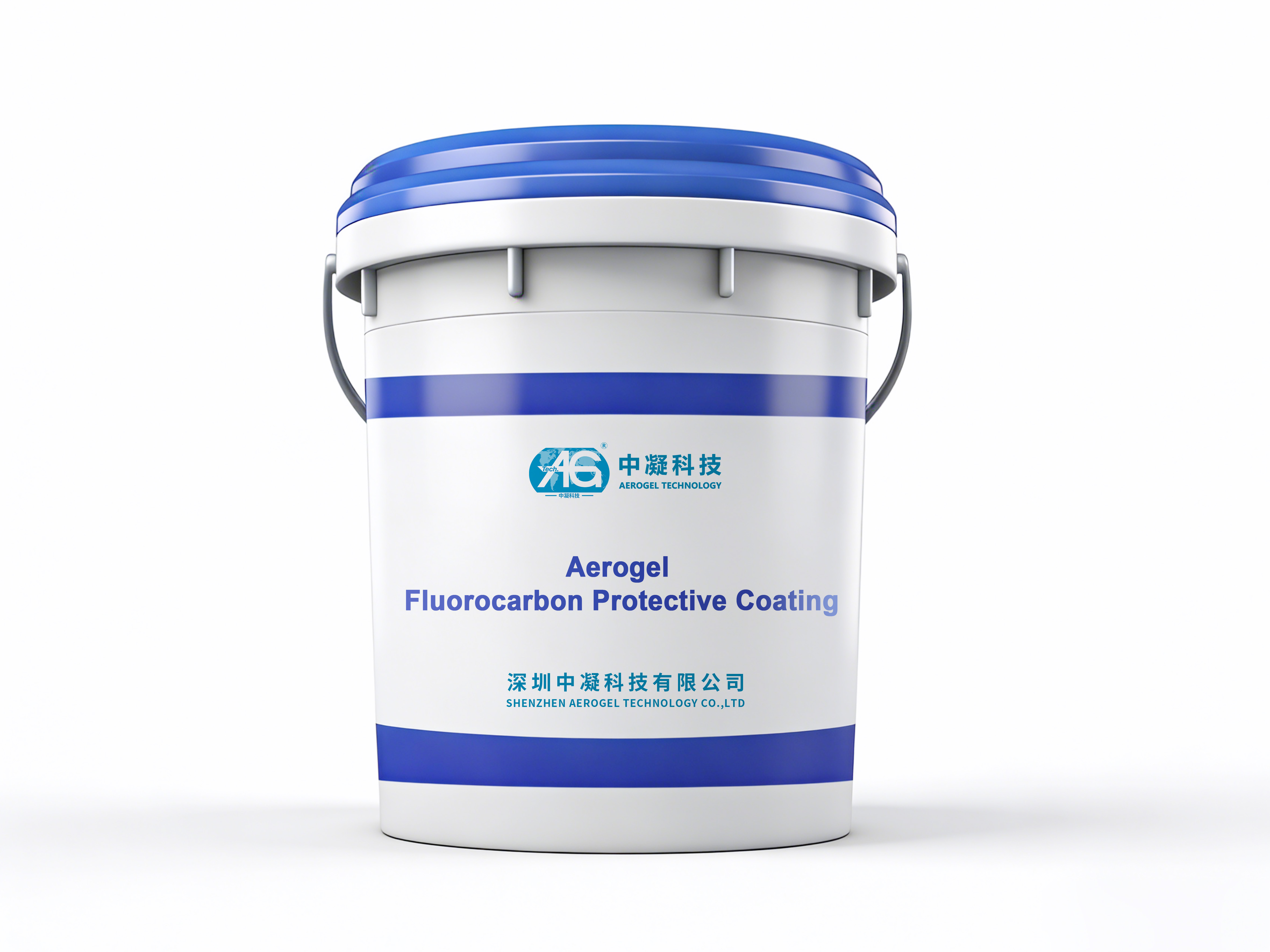

Ag-Cft01 Aerogel Fluorocarbon Coating

AG-CFT01 Aerogel Fluorocarbon Coating

AG-CFT01 outperforms conventional fluorocarbon coatings. Using aerogel powder as the key functional filler and fluorocarbon emulsion as the binder,It offers superior weatherability combined with excellent thermal insulation. AG-CFT01 can reduces cracking and deterioration of concrete structures caused by thermal contraction and freeze-thaw cycles, offering integrated long-term curing and protection. This product is OEM available.

Product Detail

The Core Functions of AG-CFT01

Thermal Stress Reduction

AG-CFT01 is designed to help reduce heat transfer between the environment and concrete substrates. By incorporating aerogel functional fillers into the fluorocarbon coating system, the coating helps stabilize surface temperature fluctuation caused by repeated day and night temperature changes.

This helps reduce thermal expansion and contraction stress on exposed concrete structures.

Moisture Protection

AG-CFT01 forms a continuous protective layer that helps limit moisture ingress into concrete surfaces. By reducing water penetration, the coating helps reduce deterioration caused by freeze-thaw cycling, humidity and long-term outdoor exposure.

The product is suitable for environments exposed to frequent wet-dry or cold climate conditions.

Long-Term Outdoor Weather Resistance

Based on a fluorocarbon emulsion system, AG-CFT01 is designed for long-term outdoor protection under UV exposure, humidity and environmental aging conditions.

The coating helps reduce surface aging risks such as cracking, peeling and weather-related deterioration on exterior concrete structures.

Typical Application Environments

AG-CFT01 is suitable for projects exposed to long-term environmental stress, including:

high-altitude regions with large temperature fluctuations

freeze-thaw climate regions

outdoor concrete infrastructure

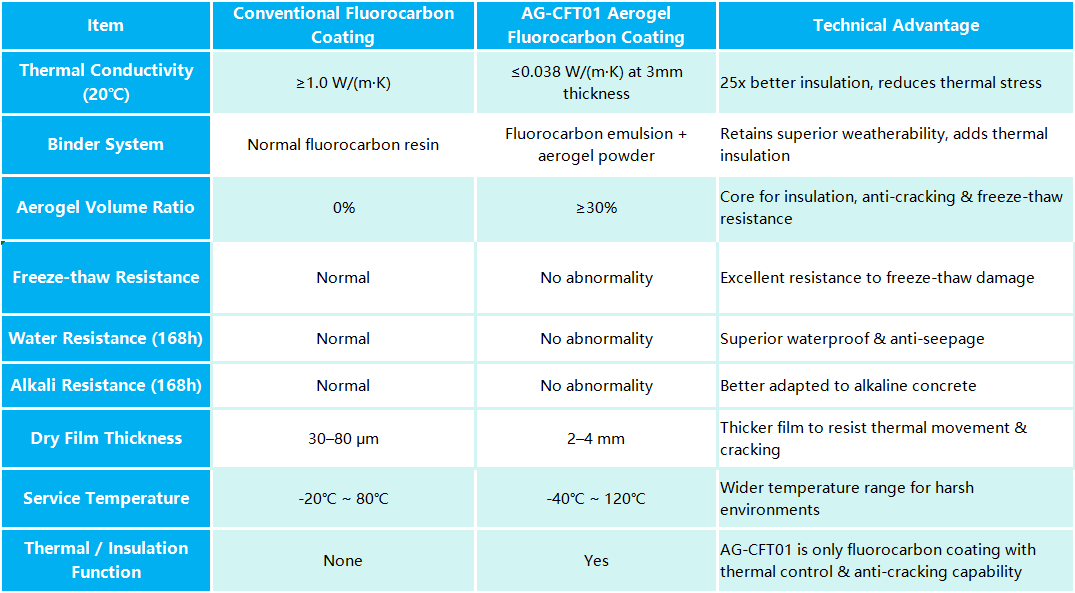

Technical Specifications

Thermal Conductivity (20°C): ≤0.038 W/(m·K) at 3mm thickness

Binder System: Fluorocarbon emulsion and aerogel powder

Aerogel Volume Ratio: ≥30%

Freeze-thaw Resistance: No abnormality

Water Resistance (168h): No abnormality

Alkali Resistance (168h): No abnormality

Dry Film Thickness: 2–4 mm

Service Temperature Range: -40°C ~ 120°C

Thermal / Insulation Function: Yes

AG-CFT01 Core Technical Specifications

Be Used For

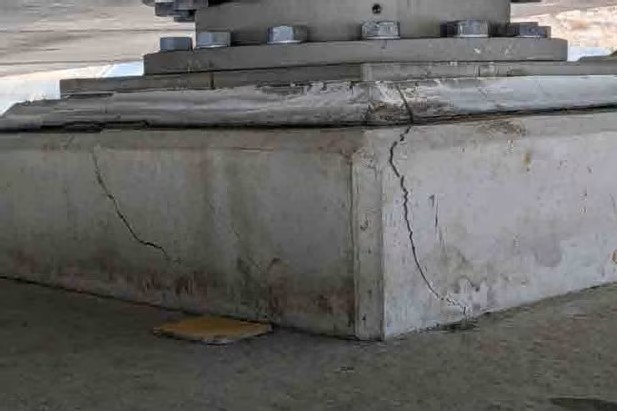

Bridge Pier Protection

Concrete piers are prone to cracking and deterioration caused by thermal expansion and freeze-thaw cycles. CG-CFT01 prevents damage and extends the service life of concrete structures.
Thermal Crack Prevention

Thermal cracks are caused by repeated thermal expansion and contraction due to temperature fluctuations.AG-CFT01 reduces thermal stress and effectively prevents thermal cracks in concrete.

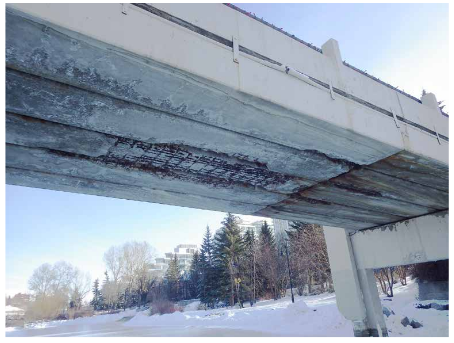

Freeze-Thaw Protection

Freeze-thaw cycles cause internal pressure, cracking and deterioration of concrete. AG-CFT01 blocks moisture ingress and effectively resists freeze-thaw damage.
