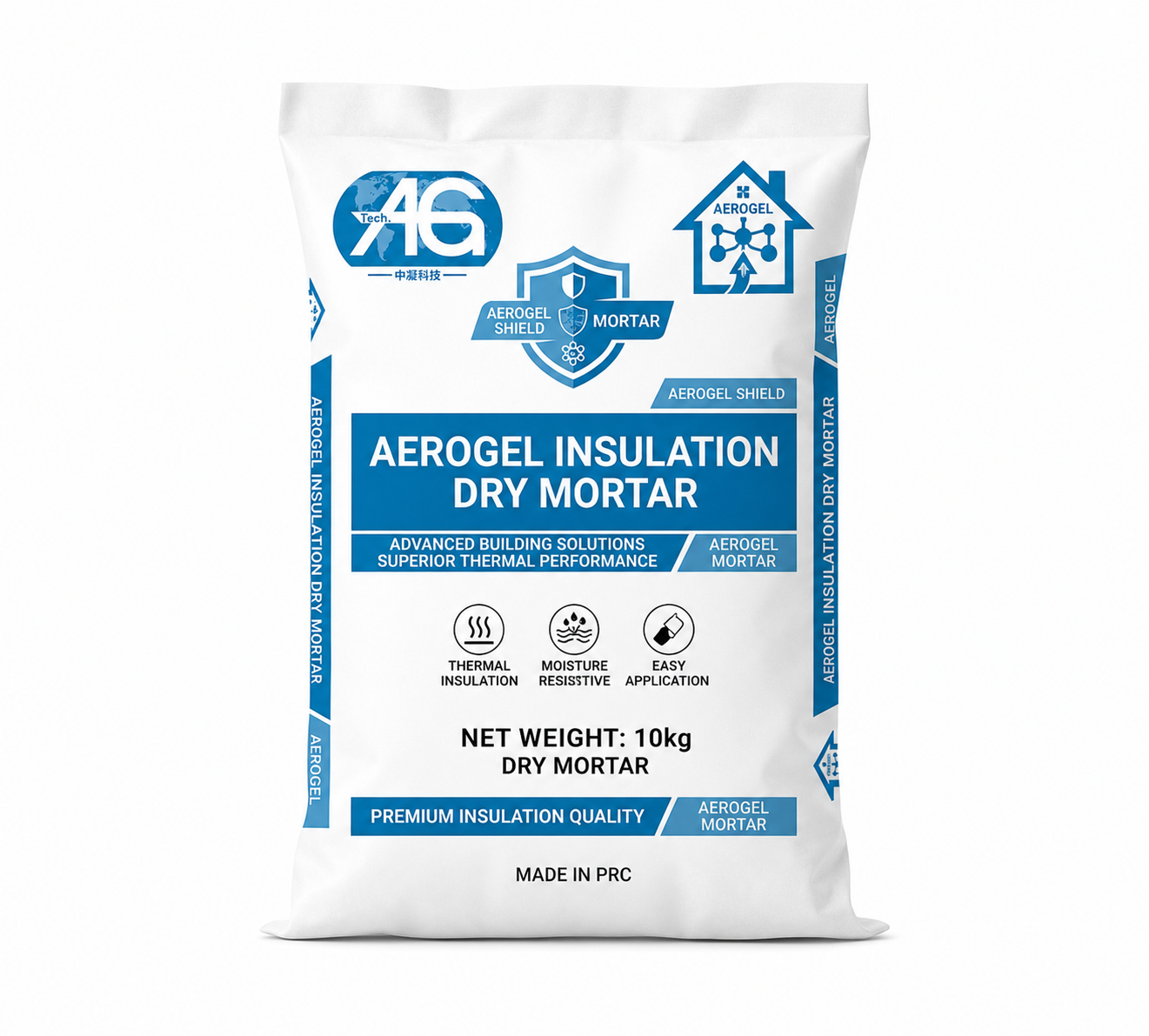

AG-DC Aerogel Thermal Insulation Mortar

Technical Advantages

Industry-Leading Insulation

Powered by advanced silica aerogel technology, AG-DC-A grade achieves an ultra-low thermal conductivity of ≤ 0.035 W/(m·K). It meets strict global energy-saving targets with significantly less thickness compared to traditional insulation mortar, maximizing indoor structural space.

Thick-Coat Anti-Cracking & High Workability

Thanks to its exceptional engineering plasticity, it allows for thick-layer construction (up to 10mm per single coat) without shrinking or tearing, which means say goodbye to multi-layer cracking. It can be applied directly as either a heavy-duty insulation mortar or a high-performance thermal putty.

Class A Non-Combustible Fire Rating

Safety is non-negotiable for large-scale projects. Formulated entirely from flame-retardant inorganic components, this mortar delivers top-tier Class A fire resistance, effortlessly meeting the most stringent commercial and industrial building codes worldwide.

Lightweight and Anti-Detachment Security

With an ultra-low dry density of just 150 - 220 kg/m³, it significantly minimizes the dead weight per square meter of the building. This structural lightness ensures the insulation layer stays permanently bonded, completely eliminating the dangerous risk of falling or detaching over time.

Fast Curing & Low Water Absorption

Optimizes your project timeline with a rapid drying speed of 1 day per 3mm thickness. Additionally, its low water absorption properties prevent thermal degradation caused by moisture penetration, ensuring permanent, stable insulating power even in damp environments.

Target Applications

Internal & External Walls

Accomplishes simultaneous surface leveling and high-efficiency wall thermal insulation.

Floor Slabs & Roofs

Minimizes building structural load while optimizing the entire building envelope's thermal efficiency.

Energy-Saving Retrofits

Ideal for modern eco-friendly architectural projects looking to simplify traditional, complex multi-layer installation workflows.

Quick Professional Construction Guide

Substrate Prep

Ensure the base surface is clean and free of oil, rust, and loose particles. Apply a standard interface cement mortar base coat before troweling.

Troweling

Mix with water at a ratio of 1.2 - 1.4 kg of water per kg of powder. Maintain a maximum thickness of 10mm per single coat. For multiple layers, use a notched trowel to rough the underlying surface to enhance adhesion.

Curing

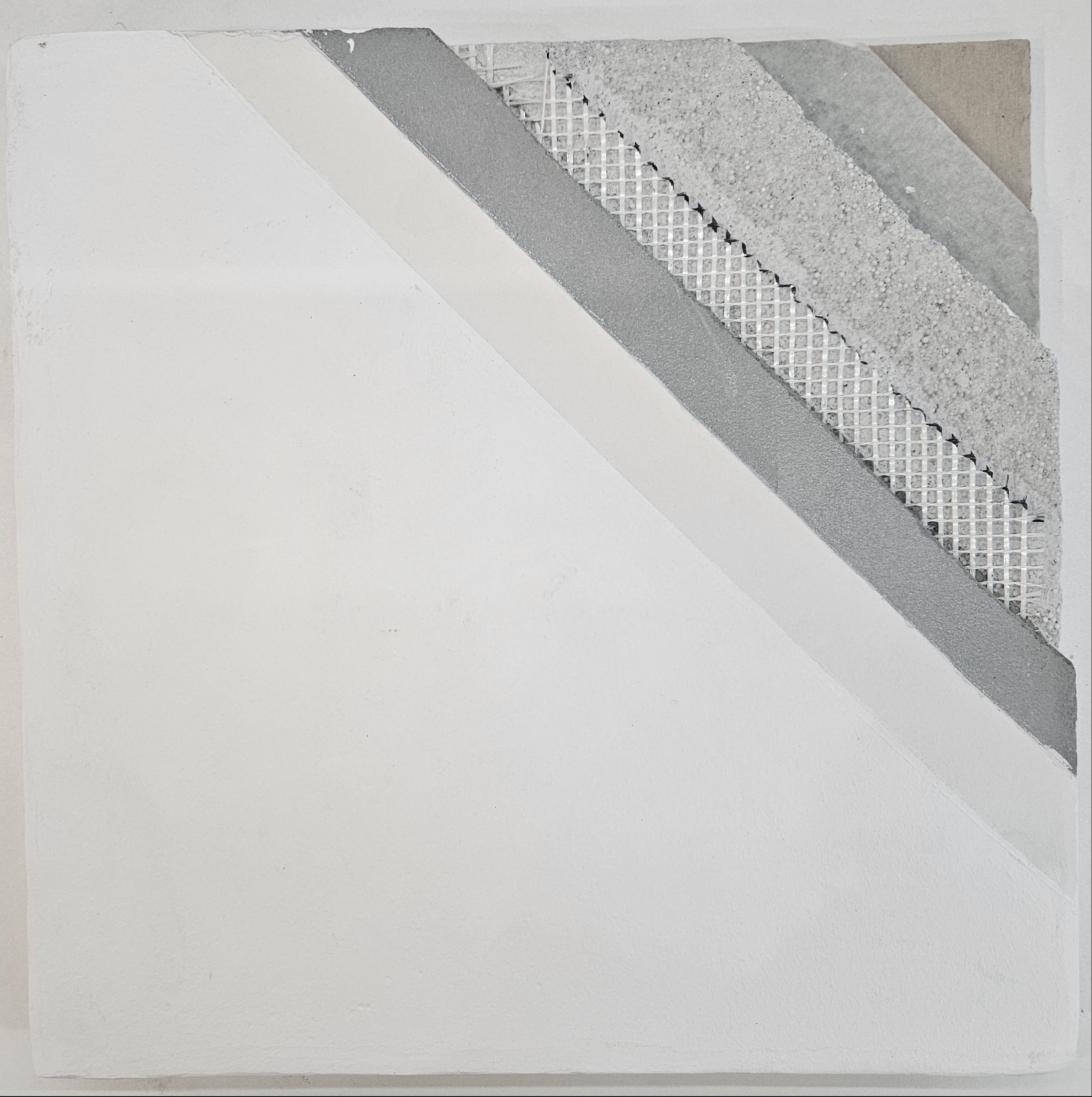

Keep the applied material moist for at least 5 days. Once fully dry, apply a crack-resistant mortar finish embedded with a reinforced mesh cloth for ultimate structural durability.
